1. JIN YI GUANG (KLM) produces the variety of C type collets and spindles for multiple spindle head.
2. JIN YI GUANG (KLM) have plentiful stock of standard collets and spindle in our warehouse. Besides, customized C type spindles are accepted.
3. C type collets don't have the gripping range. Each C type collets accepts specific size of cutters.
4. Category: C collets : For drilling, if you are going to grip the end mills or customized cutters, Please notify KLM because the tolerance is different.
                    CT collets: For tapping.
                    CS collets: For drilling, and it’s able to adjust the depth.

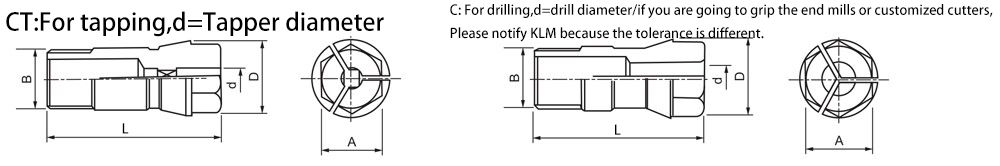

Specification

d (mm)

D (mm)

L (mm)

A (mm)

B

C:for drilling

N-1

Ø2~Ø5

Ø8.15

32

7.0

1/4"-28UNF

C-4

Ø2~Ø4

Ø8.3

24.0

6.0

1/4"-28UNF

C-5

Ø2~Ø5

Ø10.8

31.5

8.0

5/16"-24UNF

C-6

Ø2~Ø6

Ø13.1

36.0

10.0

3/8"-24UNF

C-9

Ø2~Ø9

Ø17.0

47.0

14.0

1/2"-20UNF

C-12

Ø2~Ø12

Ø21.0

50.0

17.0

5/8"-18UNF

C-14

Ø2~Ø14

Ø24.7

55.0

21.0

3/4"-16UNF

C-16

Ø2~Ø16

Ø31.0

 70.0

26.0

M24- P=2.0

CT:for tapping

NT-1

Ø2~Ø5

Ø8.15

32

7.0

1/4"-28UNF

CT-4

Ø3~Ø4

Ø8.3

24.0

6.0

1/4"-28UNF

CT-5

Ø3~Ø5

Ø10.8

31.5

8.0

5/16"-24UNF

CT-6

Ø3~Ø6

Ø13.1

36.0

10.0

3/8"-24UNF

CT-9

Ø3~Ø9

Ø17.0

47.0

14.0

1/2"-20UNF

CT-12

Ø3~Ø12

Ø21.0

50.0

17.0

5/8"-18UNF

CT-14

Ø3~Ø14

Ø24.7

55.0

21.0

3/4"-16UNF

CT-16

Ø3~Ø16

Ø31.0

 70.0

26.0

M24- P=2.0
