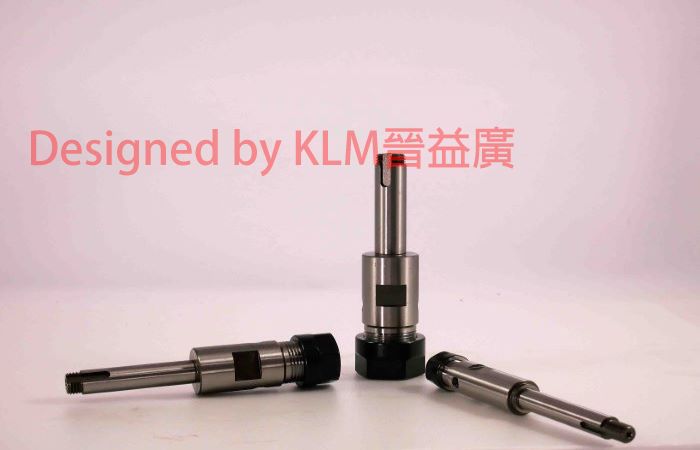

1.JIN YI GUANG (KLM) produces the variety of ER collets and spindles for mutiple spindle head.
2.ER collets are global specification .JIN YI GUANG (KLM) have plentiful stock of standard collets and spindle in our warehouse. Besides,customized ER spindles are accepted.

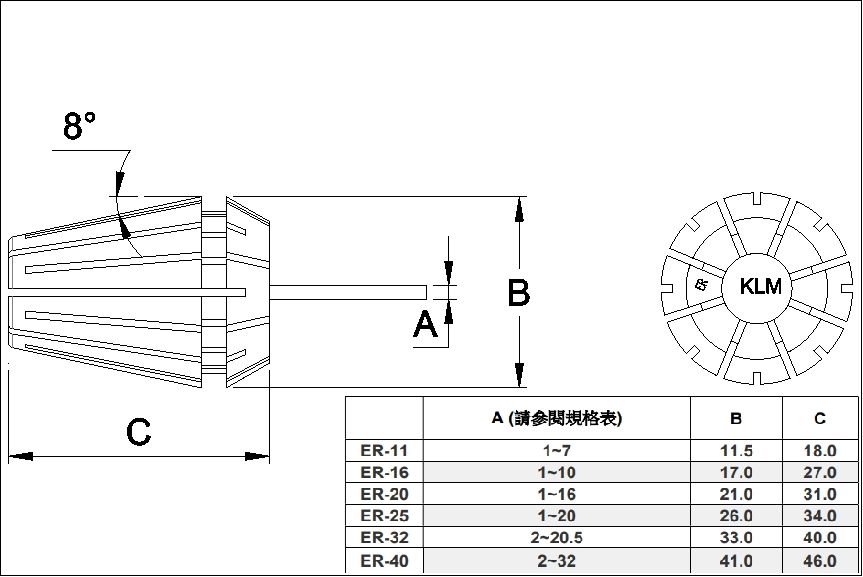

3.Each ER collet has 0.5mm range to grip the cutter
|
ER11 |
ER16 |
ER20 |
||||||
|
KLMserial number |
Gripping Range |
KLMserial number |
Gripping Range |
KLMserial number |
Gripping Range |
|||
|
ER11-0010 |
1.0~0.5 |
ER16-0010 |
1~0.5 |
ER20-0020 |
2~1 |
|||
|
ER11-0015 |
1.5~1.0 |
ER16-0020 |
2~1 |
ER20-0030 |
3~2 |
|||
|
ER11-0020 |
2.0~1.5 |
ER16-0030 |
3~2 |
ER20-0040 |
4~3 |
|||
|
ER11-0025 |
2.5~2.0 |
ER16-0040 |
4~3 |
ER20-0050 |
5~4 |
|||
|
ER11-0030 |
3.0~2.5 |
ER16-0050 |
5~4 |
ER20-0060 |
6~5 |
|||
|
ER11-0035 |
3.5~3.0 |
ER16-0060 |
6~5 |
ER20-0070 |
7~6 |
|||
|
ER11-0040 |
4.0~3.5 |
ER16-007 |
7~6 |
ER20-0080 |
8~7 |
|||
|
ER11-0045 |
4.5~4.0 |
ER16-008 |
8~7 |
ER20-0090 |
9~8 |
|||
|
ER11-0051 |
5.1~4.5 |
ER16-0090 |
9~8 |
ER20-00100 |
10~9 |
|||
|
ER11-0055 |
5.5~5.1 |
ER16-00100 |
10~9 |
ER20-00110 |
11~10 |
|||
|
ER11-0060 |
6.0~5.5 |
|
|
ER20-00120 |
12~11 |
|||
|
ER11-0065 |
6.5~6.0 |
|
|
ER20-00130 |
13~12 |
|||
|
ER11-0070 |
7.0~6.5 |
|
|
|
|
|||
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|||
|
ER25 |
ER32 |
ER40 |
||||||
|
KLMserial number |
Gripping Range |
KLMserial number |
Gripping Range |
KLMserial number |
Gripping Range |
|||
|
ER25-0020 |
2~1 |
ER32-0030 |
3~2 |
ER40-0040 |
4~3 |
|||
|
ER25-0030 |
3~2 |
ER32-0040 |
4~3 |
ER40-0050 |
5~4 |
|||
|
ER25-0040 |
4~3 |
ER32-0050 |
5~4 |
ER40-0060 |
6~5 |
|||
|
ER25-0050 |
5~4 |
ER32-006 |
6~5 |
ER40-0070 |
7~6 |
|||
|
ER25-0060 |
6~5 |
ER32-0070 |
7~6 |
ER40-0080 |
8~7 |
|||
|
ER25-0070 |
7~6 |
ER32-0080 |
8~7 |
ER40-0090 |
9~8 |
|||
|
ER25-008 |
8~7 |
ER32-0090 |
9~8 |
ER40-00100 |
10~9 |
|||
|
ER25-0090 |
9~8 |
ER32-00100 |
10~9 |
ER40-00110 |
11~10 |
|||
|
ER25-00100 |
10~9 |
ER32-00110 |
11~10 |
ER40-00120 |
12~11 |
|||
|
ER25-00110 |
11~10 |
ER32-00120 |
12~11 |
ER40-00130 |
13~12 |
|||
|
ER25-00120 |
12~11 |
ER32-00130 |
13~12 |
ER40-00140 |
14~13 |
|||
|
ER25-00130 |
13~12 |
ER32-00140 |
14~13 |
ER40-00150 |
15~14 |
|||
|
ER25-00140 |
14~13 |
ER32-00150 |
15~14 |
ER40-00160 |
16~15 |
|||
|
ER25-00150 |
15~14 |
ER32-00160 |
16~15 |
ER40-00170 |
17~16 |
|||
|
ER25-00160 |
16~15 |
ER32-00170 |
17~16 |
ER40-00180 |
18~17 |
|||
|
|
|
ER32-00180 |
18~17 |
ER40-0019 |
19 ~18 |
|||
|
|
|
ER32-00190 |
19~18 |
ER40-0020 |
20~17 |
|||
|
|
|
ER32-0020 |
20~19 |
ER40-0022 |
22~18 |
|||
|
|
|
|
|
ER40-0023 |
23~19 |
|||
|
|
|
|
|
ER40-0024 |
24~20 |
|||
|
|
|
|
|
ER40-0025 |
25~22 |
|||
|
|
|
|
|
ER40-0026 |
26~24 |
|||
