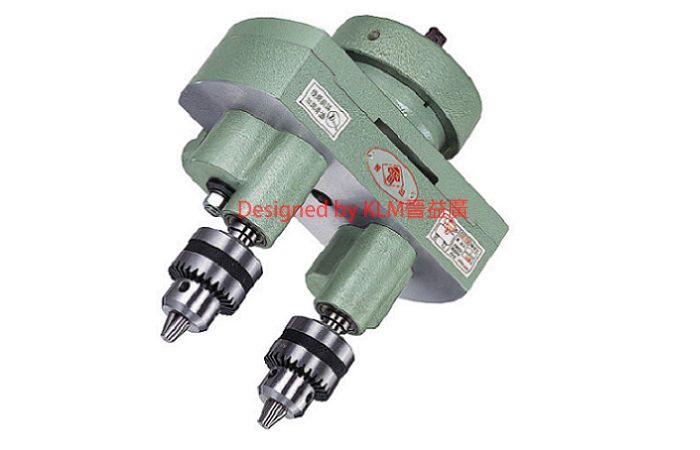

1.Due to the longer pitch between the spindle of D type , it's able to install the JT tapper chuck.
2.Amounts of spindle : 2 or 4
3.Drilling capacity & Adjustable pitch ,please ckeck out the specification sheets below.
1.Due to the longer pitch between the spindle of D type , it's able to install the JT tapper chuck.
2.Amounts of spindle : 2 or 4
3.Drilling capacity & Adjustable pitch ,please ckeck out the specification sheets below.
Specification |
Drilling capacity(mm) |
Amounts of spindle |
Spindle & Collet |
Minimum distance(mm) |
Maximum distance(mm) |
Speed ratio |
D-170 |
Ø6 ~ Ø9 |
2 |
JT1/JT2 |
37 |
170 |
1:2.9 |
D-176 |
Ø9 ~ Ø11 |
2 |
JT2/JT6 |
46 |
176 |
1:1.35 |
D-177(D-192) |
Ø6 ~ Ø9 |
2 |
JT1/JT2 |
37 |
177 |
1:3 |
D-183 |
Ø11 |
2 |
JT6 |
46 |
183 |
1:1 |
D-198 |
Ø9.5~ Ø12 |
2 |
JT2/JT6 |
45 |
198 |
1:2.9 |
D-240 |
Ø 12 |
2 |
JT6 |
55 |
240 |
1:3.2 |
D-252 |
Ø9.5~ Ø12 |
2 |
JT2/JT6 |
96 |
252 |
1:2.5 |
D-272 |
Ø9.5~ Ø12 |
2 |
JT2/JT6 |
116 |
272 |
1:1 |
KLM is able to customized D type, feel free to contact us |
||||||
